TC2-XTG4

ETA: 14 working days.

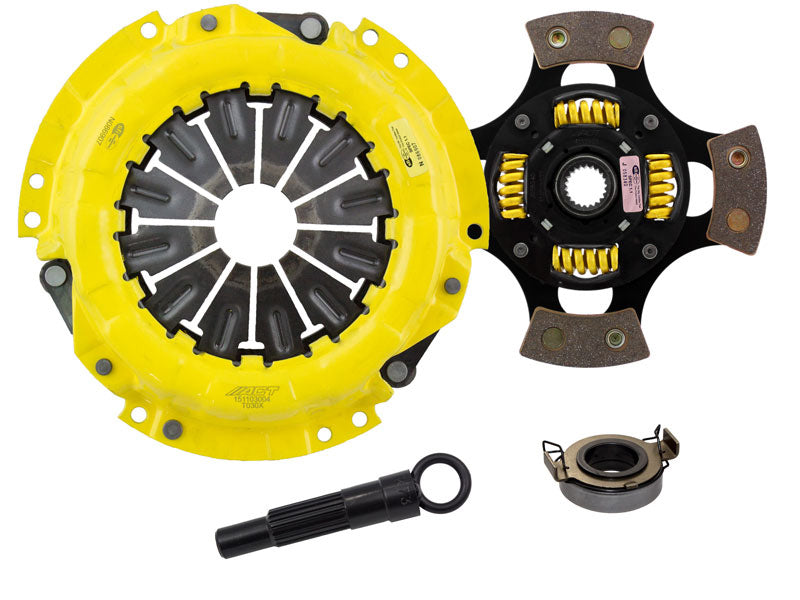

XT/Race Sprung 4 Pad for Geo, Pontiac, Toyota TC2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Feel:

Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle

Life:

Moderate friction life, extended by ACT's exclusive diaphragm design

Quality:

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommendation:

Recommended for high horsepower street or race use

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Toepassing: Geo Prizm Base 1991 1.6L L4 1587cc (8th digit of VIN # must be (6)) Geo Prizm GSi 1991 1.6L L4 1587cc (8th digit of VIN # must be (6)) Geo Prizm LSi 1991 1.6L L4 1587cc (8th digit of VIN # must be (6)) Geo Prizm Base 1993 1.6L L4 1588cc 98 CID Geo Prizm Base 1994 1.6L L4 1588cc 98 CID Geo Prizm Base 1995 1.6L L4 1588cc 98 CID Geo Prizm Base 1996 1.6L L4 1588cc 98 CID Geo Prizm Base 1997 1.6L L4 1588cc 98 CID Geo Prizm GSi 1992 1.6L L4 1587cc (8th digit of VIN # must be (5)) Geo Prizm Base 1992 1.6L L4 1587cc (8th digit of VIN # must be (5)) Geo Prizm LSi 1993 1.8L L4 1788cc 110 CID Geo Prizm LSi 1993 1.6L L4 1588cc 98 CID Geo Prizm LSi 1994 1.8L L4 1788cc 110 CID Geo Prizm LSi 1994 1.6L L4 1588cc 98 CID Geo Prizm LSi 1995 1.8L L4 1788cc 110 CID Geo Prizm LSi 1995 1.6L L4 1588cc 98 CID Geo Prizm LSi 1996 1.8L L4 1788cc 110 CID Geo Prizm LSi 1996 1.6L L4 1588cc 98 CID Geo Prizm LSi 1997 1.8L L4 1788cc 110 CID Geo Prizm LSi 1997 1.6L L4 1588cc 98 CID Pontiac Vibe Base 2003 1.8L L4 1794cc Pontiac Vibe GT 2003 1.8L L4 1795cc Toyota Celica 6/1991 to 8/1993 ST 1.6L L4 1587cc Toyota Celica 9/1993 to 1997 1.8L L4 1762cc Toyota Celica 2000-2005 GT & GTS 1.8L L4 1794cc 2ZZ-GE 6SPD Toyota Corolla 6/1992 to 2013 1.6L L4 1587cc Toyota MR-S 2000-2005 1.8L L4 1794cc Toyota Corolla 6/1992 to 2013 1.8L L4 1762cc (5 Speed) Pontiac Vibe Base 2004 1.8L L4 1794cc Pontiac Vibe GT 2004 1.8L L4 1795cc Pontiac Vibe Base 2005 1.8L L4 1794cc Pontiac Vibe GT 2005 1.8L L4 1795cc Pontiac Vibe Base 2006 1.8L L4 1794cc Pontiac Vibe GT 2006 1.8L L4 1795cc Pontiac Vibe Base 2007 1.8L L4 1794cc Pontiac Vibe Base 2008 1.8L L4 1794cc Geo Prizm LSi 1992 1.6L L4 1587cc (8th digit of VIN # must be (5))
