HC5-XXR6

ETA: 14 working days.

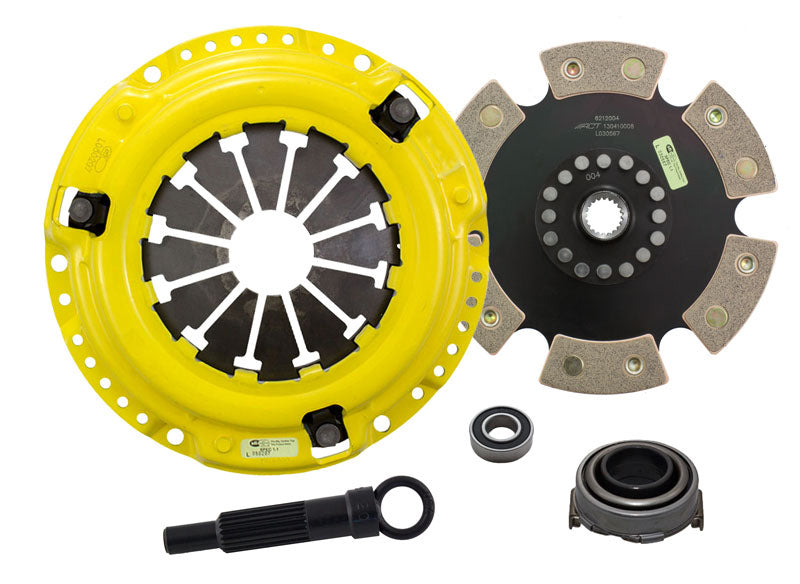

MaXX/Race Rigid 6 Pad for Honda Accord, Honda CRX Del Sol, Honda Civic HC5-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Feel:

Heavy to very heavy pedal effort, aggressive engagement, quicker shifts, increased gear rattle

Life:

Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear

Quality:

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommendation:

Recommended for race use only

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Toepassing: Honda Civic 1996-1998 1.6L L4 1590cc iLS/iSR (D16Y7/D16Y8) Honda Civic 1998-2000 1.5L L4 1493cc VTEC-E (D15Z6) (Several clutches available check your original clutch spec before ordering) Honda Civic 2001-2005 1.6L L4 1590cc (D16V1) Honda CRX Del Sol 1992-1998 1.5L L4 1493cc Honda CRX Del Sol 1992-1998 1.6L L4 1590cc ESi (D16Z6/D16Y8) (212mm upgrade, Must be used with 90-01 SOHC flywheel) Honda Civic 2001-2005 1.7L L4 1668cc i ES/i LS (D17A8/D17A9) Honda Civic 1998-2000 1.4L L4 1396cc (D14A3/D14A4/D14Z2) (Several clutches available check your original clutch spec before ordering) Honda Civic 1992-1996 1.5L L4 1493cc DXi/LSi/VEi (D15B2/D15B7/D15Z1) Honda Civic 1992-1996 1.6L L4 1590cc ESi (D16Z6/D16Z9) Honda Civic 1998-2000 1.6L L4 1590cc iLS/iSR (D16Y7/D16Y8) Honda Civic 2001-2005 1.4L L4 1.396cc (D14Z6) Honda Civic 1996-1998 1.4L L4 1396cc (D14A3/D14A4/D14Z2) Honda Civic 1996-1998 1.5L L4 1493cc VTEC-E (D15Z6) (Several clutches available check your original clutch spec before ordering) Honda Accord 1998-2003 1.6L L4 1590cc (D16B6)
