HC5-SPG4

ETA: 14 working days.

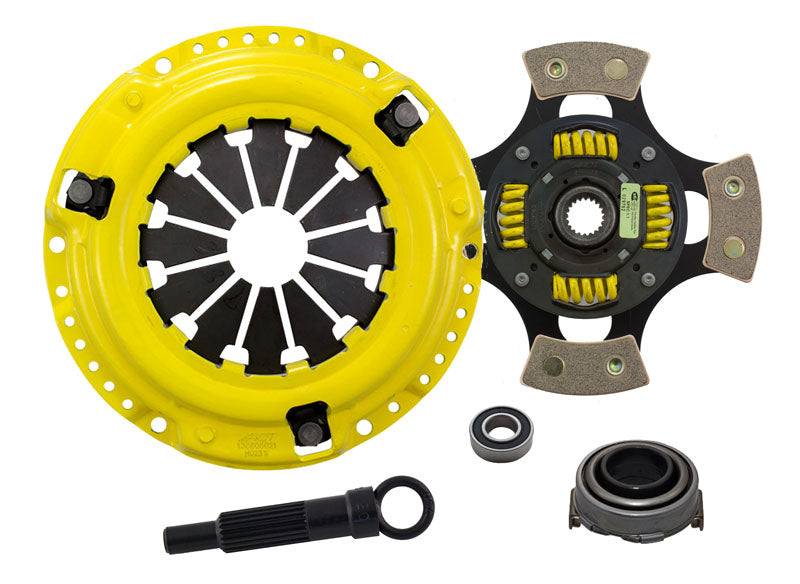

Sport/Race Sprung 4 Pad for Honda Accord, Honda CRX Del Sol, Honda Civic HC5-SPG4 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Feel:

Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle

Life:

Moderate friction life, extended by ACT's exclusive diaphragm design

Quality:

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommendation:

Recommended for high horsepower street or race use

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Toepassing: Honda Civic 1996-1998 1.6L L4 1590cc iLS/iSR (D16Y7/D16Y8) Honda Civic 1998-2000 1.5L L4 1493cc VTEC-E (D15Z6) (Several clutches available check your original clutch spec before ordering) Honda Civic 2001-2005 1.6L L4 1590cc (D16V1) Honda CRX Del Sol 1992-1998 1.5L L4 1493cc Honda CRX Del Sol 1992-1998 1.6L L4 1590cc ESi (D16Z6/D16Y8) (212mm upgrade, Must be used with 90-01 SOHC flywheel) Honda Civic 2001-2005 1.7L L4 1668cc i ES/i LS (D17A8/D17A9) Honda Civic 1998-2000 1.4L L4 1396cc (D14A3/D14A4/D14Z2) (Several clutches available check your original clutch spec before ordering) Honda Civic 1992-1996 1.5L L4 1493cc DXi/LSi/VEi (D15B2/D15B7/D15Z1) Honda Civic 1992-1996 1.6L L4 1590cc ESi (D16Z6/D16Z9) Honda Civic 1998-2000 1.6L L4 1590cc iLS/iSR (D16Y7/D16Y8) Honda Civic 2001-2005 1.4L L4 1.396cc (D14Z6) Honda Civic 1996-1998 1.4L L4 1396cc (D14A3/D14A4/D14Z2) Honda Civic 1996-1998 1.5L L4 1493cc VTEC-E (D15Z6) (Several clutches available check your original clutch spec before ordering) Honda Accord 1998-2003 1.6L L4 1590cc (D16B6)
