BM6-HDG6

ETA: Discontinued.

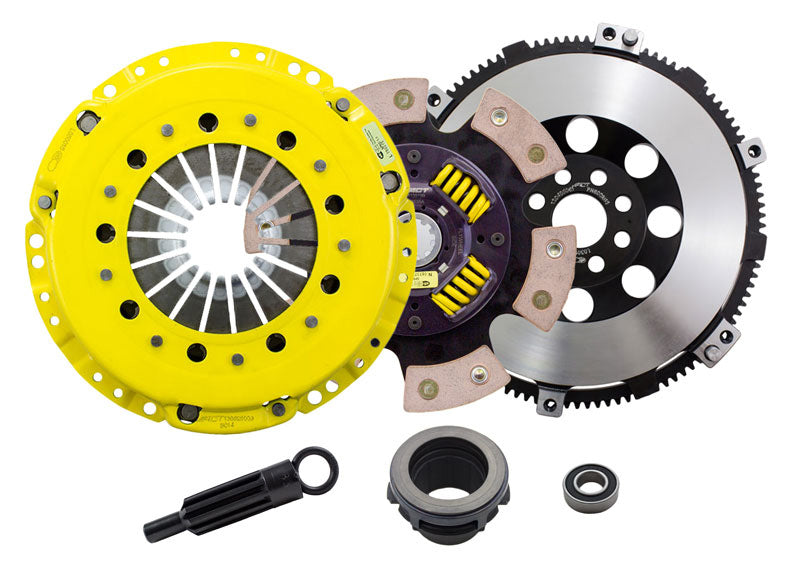

HD/Race Sprung 6 Pad for BMW 325i (E36) 1992-2000 2.5L L6 2494cc 152 CID (M50), BMW 525i (E34) 1992-1995 2.5L L6 2494cc 152 CID, BMW Z3 Roadster 1998-2002 1.9L L4 1895cc, BMW Z3 Roadster 1998-2002 2.5L L6 2494cc 152 CID BM6-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Feel:

Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle

Life:

Moderate friction life, extended by ACT's exclusive diaphragm design

Quality:

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommendation:

Recommended for high horsepower street or race use

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fits 10 spline transmission

Toepassing: BMW Z3 Roadster 1998-2002 1.9L L4 1895cc BMW Z3 Roadster 1998-2002 2.5L L6 2494cc 152 CID BMW 325i (E36) 1992-2000 2.5L L6 2494cc 152 CID (M50) BMW 525i (E34) 1992-1995 2.5L L6 2494cc 152 CID (5 Speed applications only)
